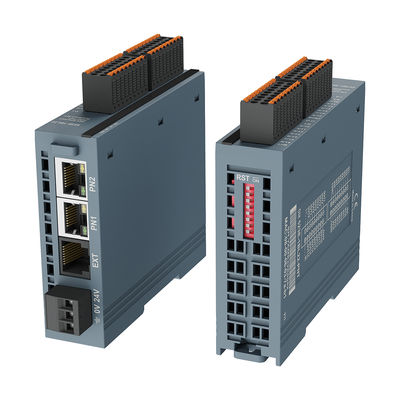

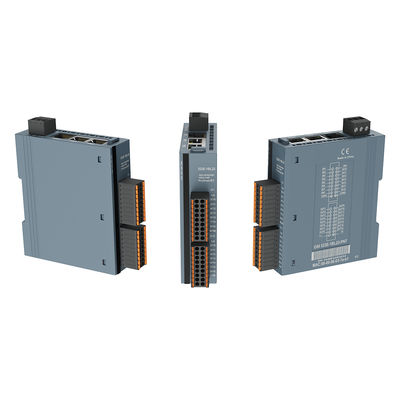

OM52*E Profinet-RT Bus Coupler PLC IO Module 16DI+16DO PNP
Product Features of OM52*E Profinet-RT Bus Coupler
Specification of Profinet-RT PAL I/O module
|
Ordering data |
|
|
Model |
OM52xE Distributed scalable coupler |
|
Technical Specifications |
|
|
Operating voltage |
24VDC (allowable voltage range 18VDC~28VDC) |
|
Working Current Consumption |
For details, please refer to the product manual for different product models. |
|
Power Protection |
Anti-reverse connection protection, surge absorption |
|
Bus Communication Interface |
2*RJ45 |
|
Extension module interface |
1*RJ45 |
|
Power terminal type |
Plug-in connector, screw terminal |
|
Signal terminal type |
Plug-in connectors, straight-through push-in terminals, or MIL horn sockets |
|
Indicator |
Power indicator, NET green indicator, SF red indicator , IO signal green indicator |
|
Support Protocol |
Prof inet-RT |
|
Master-Slave Category |
Independent slave device |
|
Ontology IO point |
Yes, see ordering data for details |
|
Overcurrent protection threshold |
1.5A,5ms |
|
IO response time |
Minimum 1ms |
|
Scalability |
16 EM500E-EM modules |
|
Extended connection distance |
Total length: 150 meters, maximum length between modules: 20 meters |
|
Cable length (shielded) |
Up to 500m |
|
Cable length (unshielded) |
The maximum input distance is 300m, and the maximum output distance is 150m |
|
Slave Settings |
|
|
Device name and IP settings |
Master station automatic allocation or manual allocation |
|
Maximum number of stations per section |
255 (the specific number of supported stations is determined by the master station) |
|
Work Environment |
|
|
Working temperature |
-20~60℃ |
|
Ordering data |
|
|
Model |
OM52xEDistributed scalable coupler |
|
Work Environment |
|
|
Working environment humidity |
5%~90% (no condensation) |
|
Altitude |
Below 2000 meters (80kPa) |
|
Protection level |
IP20 |
|
Dimensions (length * width * height) |
27*104*114cm |
Packing
Ordering Details
|
Specification |
Order Number |
|
OM523E vertical internal bus distributed scalable coupler, Profinet-RT bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port cable cascade, Category 5e cable module length limit of 20 meters, extension cable total limit of 150 meters), expandable to 16 modules, 24VDC power supply, with reset dial switch, the main body has 16DI (common cathode/common anode input), 16DO (PNP output), IP20 protection level, DN35 rail installation |
OM 523E-1BL22-PNT |
|
OM523E vertical internal bus distributed scalable coupler, Profinet-RT bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port cable cascade, Category 5e cable module length limit of 20 meters, extension cable total limit of 150 meters), expandable to 16 modules, 24VDC power supply, with reset factory parameter DIP switch, the main body has 16DI (common cathode/common anode input), 16DO (NPN output), DN35 installation, MIL horn socket |
OM 523E-1NL22-PNT-MIL |
|
OM524E vertical internal bus distributed scalable coupler, Profinet-RT bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port cable cascade, Category 5e cable module length limit of 20 meters, extension cable total limit of 150 meters), expandable to 16 modules, 24VDC power supply, with reset factory parameters DIP switch, the main body has 16DI (common cathode/common anode input), 16DIO (PNP input/PNP output configurable, 2-way group configuration), IP20 protection level, DN35 rail installation |
OM 524E-2BL22-PNT |
