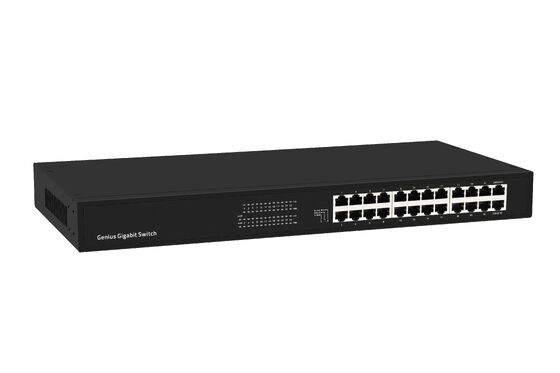

Olycom 24-port Gigabit Ethernet switch with VLAN/Extend mode
|
Product Name |
24 Port 10/100/1000Mbps Rack Type Ethernet Switch |
|
Port |
24x10/100/1000M UTP RJ45(Support MDI/MDIX, auto-sensing) |
|
Switching Capacity |
48Gbps |
|
Throughput |
35.71Mpps |
|
Packet Buffer |
4M |
|
MAC Address |
8K |
|
Jumbo Frame |
4Kbytes |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hours |
|
Network Protocol |
IEEE802.3(10Base-T) IEEE802.3u(100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3x(Flow control) |
|
Industry Standard |
EMI: FCC Part 15 CISPR(EN55032)class A EMS: EN61000-4-2(ESD) EN61000-4-5(Surge) |
|
Network Medium |
10Base-T: Cat3, 4, 5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m) |
|
Certification |
CE/FCC/RoHS |
|
Working Environment |
Working Temperature: -10℃~50℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
|
Input Voltage |
AC100-240V, Single Power Input Internal AC-DC Converter: 12V2A |
|
LED Indicators |
PWR(Power indicator)/LOOP(Loop alarm)/Link(Network Link)/1000M |
|
DIP Switch |
VLAN: Port Isolation, 1-22 ports are isolated each other, all communicate with uplink port 23/24 Default: Default mode, support loop alarm Extend: Monitor Mode, 1-22 ports support 100M speed reduction negotiation, support 250 meters in 10M/s mode, port 23/24 as uplink port |
1pc switch(neutral device)
1pc power cable(standards vary across countries)
1pc user manual(including QIG information)
1pair mounting brackets(rack mountable)
Product size: 440*204*44.5mm
Inner box size: 500*275*85mm
Product weight: 2.2Kg
Packing weight: 2.7Kg
Master box size: 520*445*300mm
Packing quantity: 5Pcs
Packing weight: 14.5Kg
Remark
Accessories(Network cable etc.)are NOT included in the packing box
Power cable is included in BOTH the packing box AND unit pricing
Application Diagram
