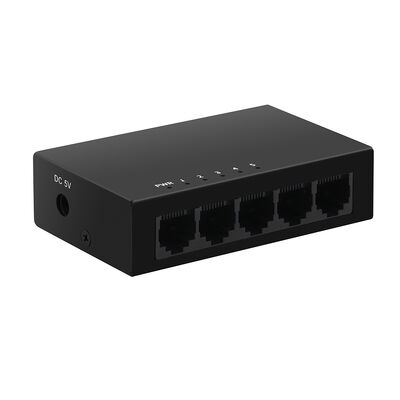

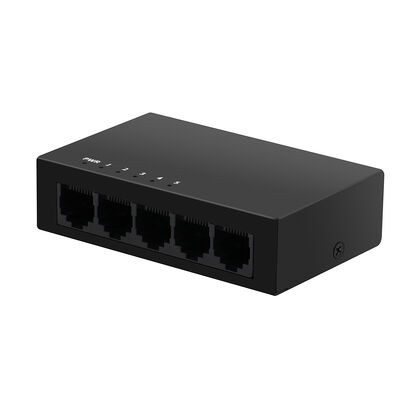

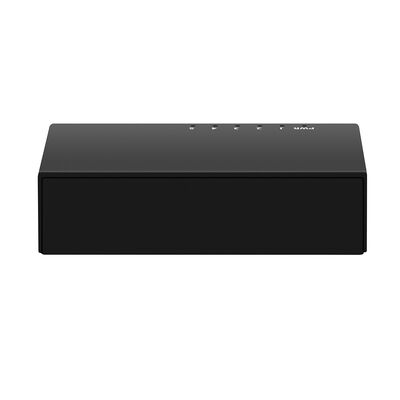

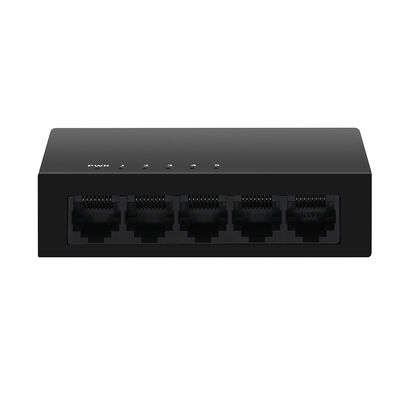

5-Port 1G Desktop Ethernet Switch
Introduction
It adopts high-quality and high-speed network intelligent chip and completely solves the noise problem of small switches in the office environment through the fan-less mute design
This switch has 5 Gigabit RJ45 ports enjoying
It can be widely used in security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions
Key Features
Specification
|
Product Name |
5 Port 10/100/1000Mbps Ethernet Switch |
|
Port |
5x10/100/1000M UTP RJ45(Support MDI/MDIX, auto-sensing) |
|
Switching Capacity |
10Gbps |
|
Throughput |
7.44Mpps |
|
Packet Buffer |
3M |
|
MAC Address |
2K |
|
Jumbo Frame |
15Kbytes |
|
VLAN |
4K |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hours |
|
Network Protocol |
IEEE802.3(10Base-T) IEEE802.3u(100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3x(Flow control) |
|
Industry Standard |
EMI: FCC Part 15, CISPR(EN55032) class A EMS: EN61000-4-2(ESD) EN61000-4-5(Surge) |
|
Network Medium |
10Base-T: Cat3, 4, 5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m) |
|
Certification |
CE/FCC/RoHS |
|
Working Environment |
Working Temperature: -10℃~50℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
|
Input Voltage |
DC5V1A |
|
Power Consumption |
＜5W |
|
LED Indicators |
PWR(Power indicator) On: power on
Link(Network Link) On: 10/100/1000M link connection is normal Blinking: Data transmission is normal Off: link failure |
Dimension
Packing Information
Shipping box information(Below information is approximately accurate)
Product size: 87*54*23mm
Inner box size: 90*88*58mm
Product weight: 0.13Kg
Packing weight: 0.2Kg
Master box size: 470*320*380mm
Packing quantity: 100Pcs
Packing weight: 21Kg
Remark
Accessories(Network cable etc.)are NOT included in the packing box
Power adapter is included in BOTH the packing box AND unit pricing
