Olycom 8-Port L2+ Web Manageable Gigabit Network Switch
Specification
|
Product Name |
10/100/1000Mbps Managed Industrial Fiber Switch(1F+8TP) |
|
Model No. |
IM-FS180GW |
|
Port |
1*100/1000/2500Mpbs SFP ports SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 8*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
|
Protocol |
IEEE 802.3 IEEE802.3U IEEE802.3ab IEEE802.3z IEEE802.1d STP IEEE802.1w RSTP IEEE802.1s MSTP ITU-T G.8023 EPR/Y.1344 IEEE802.1Q IEEE802.1X IEEE802.3ad IEEE802.3x IEEE802.1ad IEEE802.1p IEEE802.1ab IEEE802.3az |
|
Switching Features |
Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 21Gbps(non-traffic jam) DRAM size: 128M Flash size: 16M VLAND ID: 4096 MAC Address Table Size: 8K Jumbo Frame: 9.6KB |
|
Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
|
LEDs |
Power, network, fiber PWR: Power
Orange: Link/ACT Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: FX1 |
|
Power Supply |

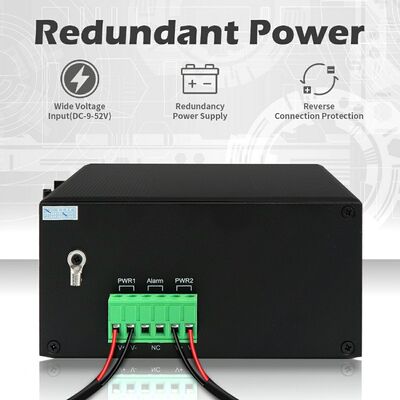

Redundant DC12V~DC52V input, typically DC12V/DC24V/DC48V Reverse connection: support |
|
Power Consumption |
Full loading≤5W |
|
Environment |
Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
|
Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV |
|
Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014 |
|
Mechanical Information |
Shell: Corrugated metal shell, IP40 grade level Dimension: 158*115*60mm Mounting method: Din-rail/Wall mounting Weight: 0.75Kg/0.9Kg(Net/Gross) |
|
Warranty |
3 years, lifetime technical support |
Key Features
1. Flexible Industrial Port Design
Provides a hybrid networking interface consisting of one 2.5Gbps SFP fiber port and eight auto-negotiating Gigabit RJ45 ports. Auto MDI/MDIX support eliminates the need for crossover cables, simplifying installation in mixed industrial network environments.
2. High-Availability Network Protection
Supports ITU-T G.8032 Ethernet Protection Ring and IEEE 802.1 STP / RSTP / MSTP protocols, enabling rapid network convergence and loop avoidance for industrial networks that require continuous availability.
3. High-Performance Switching Architecture
Implements store-and-forward switching with ultra-low latency (under 10 μs). Features a non-blocking switching capacity up to 36Gbps, an 8K MAC address table, support for 4096 VLANs, a 4Mb packet buffer, and jumbo frames up to 9.6KB, ensuring efficient handling of large data flows.
4. Industrial-Grade Hardware Resources
Equipped with 128MB DRAM and 16MB Flash memory, providing sufficient system resources for stable operation, advanced management features, and sustained performance under heavy traffic conditions.
5. Intelligent Traffic Handling
Supports IEEE 802.3x flow control in full-duplex mode and back-pressure mechanisms in half-duplex mode, reducing packet loss and maintaining transmission stability during peak network loads.
6. Rugged Design for Harsh Environments
Housed in a corrugated metal enclosure with IP40 protection, the switch offers strong resistance to surge, ESD, and electrical fast transients. It complies with IEC 61000-4 standards and operates reliably across extreme temperatures and high humidity conditions, making it suitable for outdoor and industrial deployments.
7. Comprehensive Management & Diagnostics
Supports multiple management interfaces including Web GUI, Cisco-style CLI, SNMP v1/v2c/v3, and Telnet. Advanced diagnostic tools such as cable fault detection help simplify troubleshooting, while IEEE 802.3az EEE optimizes power consumption.
8. Advanced Network Functions
Includes support for VLAN tagging (802.1Q), static and dynamic link aggregation (LACP), QoS traffic prioritization, and broadcast storm control, enabling precise traffic segmentation and service differentiation.
9. Enterprise-Grade Security
Implements multi-layer security mechanisms including 802.1X authentication, RADIUS, ACL, TACACS+, and secure management protocols such as HTTPS, SSL, and SSH v2. Firmware upgrade redundancy via TFTP/HTTP, DHCP features, RMON, MIB II, and IPv6 support ensure long-term scalability and security.
10. Compact Installation & Energy Efficiency

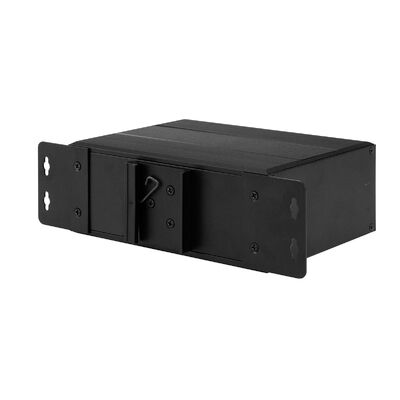

Supports DIN-rail and wall mounting for easy installation in control cabinets and field enclosures. The compact form factor (158 × 115 × 60 mm) and low power consumption (≤5W at full load) make it ideal for space- and energy-constrained industrial environments. Redundant DC 12V–52V power inputs with reverse polarity protection enhance system reliability.
11. Standards & Certification Compliance
Meets international industrial and safety standards, including CE-EMC, CE-LVD, and FCC Class B, ensuring reliable operation and regulatory compliance across global deployments.
Application
1. Automated Production & Process Control Environments
Acts as a reliable communication layer in factories and process-driven facilities, connecting controllers, sensing equipment, and field devices. Designed to sustain real-time data exchange required for operational control and equipment supervision under demanding industrial conditions.
2. Roadside, Rail, and Traffic Communication Nodes
Installed in transportation infrastructure such as roadside cabinets and rail communication points. Ring-based networking mechanisms enable rapid recovery from link failures, maintaining continuous data flow for traffic management and railway signaling systems.
3. Power, Energy, and Utility Infrastructure
Deployed across substations, utility communication networks, and renewable energy installations. Built to tolerate electrical noise and wide temperature ranges, ensuring dependable data transmission for grid visibility, monitoring, and control applications.
4. Heavy Industry and Resource Extraction Sites
Operates reliably in challenging industrial locations including mining areas, petrochemical plants, and metallurgical facilities. Industrial-grade protection against surges, dust, and environmental stress supports stable networking for control systems and monitoring equipment.
5. Water Management & Environmental Systems
Supports communication networks in water treatment facilities and environmental monitoring projects, enabling uninterrupted data delivery for automated processes, system supervision, and regulatory data collection.
6. Long-Distance Fiber Communication Networks
Functions as a fiber access or interconnection device within enterprise private networks and remote site communication architectures. The integrated 2.5Gbps SFP fiber interface supports high-bandwidth transmission over distances of up to 120 km.
7. Campus-Scale Industrial and Enterprise Networks
Provides a flexible networking foundation for industrial parks, logistics centers, and enterprise campuses, supporting segmented network design, traffic prioritization, and large numbers of connected industrial devices.
8. Remote and Unattended Industrial Installations
Enables stable connectivity for geographically dispersed equipment in mining regions, oil fields, and rural utility sites. Combines long-distance fiber transmission with rugged environmental tolerance to support continuous, unattended operation.
WEB UI
Support cable diagnosis and can locate the fault point
Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
Support IGMP agent report, MLD snooping
Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
Accessories
|
Industrial Fiber Transceiver Module |
|
|
OSPL1G05D |
1000BASE-SX |
|
OSPL1G06D |
1000BASE-SX(1310nm) |
|
OSPL1G20D |
1000BASE-LX |
|
OSPL1G40D |
1000BASE-EX |
|
OSBL1G20D-35 |
1000BASE-BX-U(TX 1310 RX1550) |
|
OSBL1G20D-53 |
1000BASE-BX-D(TX 1550 RX1310) |
|
Industrial DIN Power Adapter |
|
|
IM-DAC220/DC12V1.67A |
AC220V to DC12V1.67A, -30℃～70℃ |
|
IM-DAC220/DC24V1A |
AC220V to DC24V1A, -30℃～70℃ |
Packing List
1pc switch
1pc user manual
Remark
Accessories(DIN rail bracket, power supply, network cable etc.)are NOT included in the box
Please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 158*115*60mm
Inner box size: 253*208*80mm
Product weight: 0.75Kg
Packing weight: 0.9Kg
Master box size: 555*400*410mm
Packing quantity: 20Pcs
Packing weight: 20Kg
