4-Port Gigabit DIN PoE Switch
1. Overview

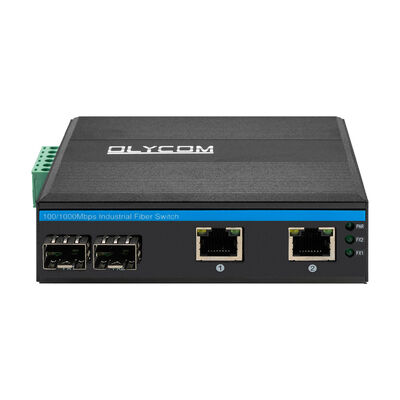

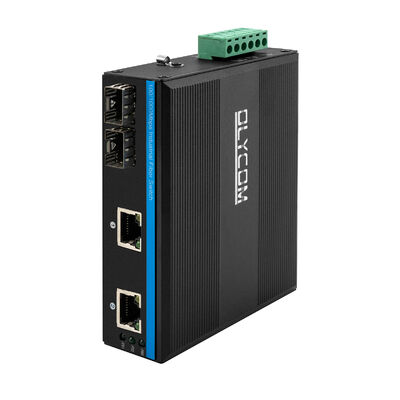

The IM-FP222GE is a compact industrial-grade Gigabit PoE fiber switch designed to deliver reliable data and power connectivity in harsh and mission-critical environments.
Featuring two Gigabit SFP fiber ports and two 10/100/1000Mbps PoE Ethernet ports, it enables seamless integration of fiber backbone networks with powered edge devices such as IP cameras and wireless access points.
With a wide operating temperature range (-40°C to +75°C), robust surge protection, and a rugged DIN-rail metal enclosure, the IM-FP222GE is built for continuous operation in industrial automation, transportation, and outdoor surveillance systems.
It is an ideal solution for IP Surveillance, wind, electricity, subway PIS, assembly automation, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries
2. Specification
|
Product Name |
10/100/1000Mbps Industrial PoE Fiber Switch(2F+2TP) |
|
Model No. |
IM-FP222GE |
|
Port |
2x100/1000M SFP Fiber SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) 1x6-PIN Power Terminal Block |
|
Protocol |
IEEE 802.3(10Base-T) IEEE 802.3u(100Base-TX) IEEE 802.3ab(1000Base-TX) IEEE 802.3af 15.4W(PoE) IEEE 802.3at 30W(PoE+) |
|
Switching Features |
Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 8Gbps (non-traffic jam) Forwarding rate: 5.952Mmps MAC: 4K Packet buffer size: 1.75Mb |
|
Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
|
LEDs |
Power, Fiber, Network, PoE PWR: Power
Fiber: FX1, FX2 On: transmission is normal Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator On: PoE is working Off: PoE is not working or this is Non-PoE device
Copper green: Speed indicator On: transmission speed is 1000Mbps Blinking: in transmission Off: Disconnected or working speed is 10/100Mbps |
|
Power Consumption |
Full loading without PoE≤5W |
|
Power Supply |
PoE power supply input voltage: 48V (max 52V) Single PoE power supply output power: 30W (port 1~2) PoE output voltage: 48V Reverse connection: support |
|
PoE Wiring |
1/2 (V+), 3/6 (V-) |
|
Environment |
Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
|
Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV |
|
Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014 |
|
Mechanical information |

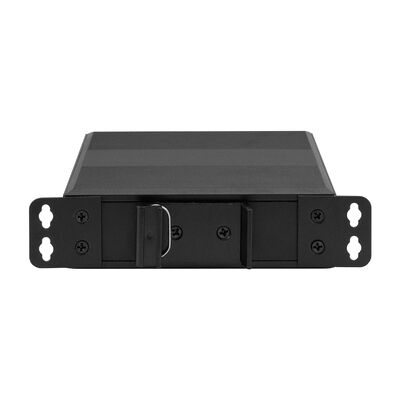

Shell: Corrugated metal shell, IP40 grade level Dimension: 114*93*35mm Mounting method: Din-rail/Wall mounting Weight: 0.35Kg/0.45Kg(Net/Gross) |
|
Warranty |
3 years, lifetime technical support |
3. Key Features
1. Gigabit Fiber & PoE Integration
2× 100/1000Mbps SFP fiber ports supporting multimode and single-mode fiber modules for flexible transmission distances
2× 10/100/1000Mbps RJ45 PoE ports compliant with IEEE 802.3af/at, delivering up to 30W per port
Total PoE power budget of 60W, suitable for high-power IP cameras and wireless devices
2. Stable Switching Performance
Store-and-forward switching architecture ensures data integrity
High system bandwidth with non-blocking forwarding and low latency
Auto-negotiation and Auto MDI/MDIX simplify network deployment
Flow control support for both full-duplex and half-duplex communication
3. Industrial-Grade Reliability
6KV Ethernet surge protection and strong EMC immunity for outdoor and high-interference environments
Wide DC power input (48V PoE system) with reverse polarity protection
Fanless corrugated metal enclosure (IP40) for efficient heat dissipation
DIN-rail or wall mounting options for flexible installation
4. Easy Monitoring & Compliance
LED indicators for power, fiber link, Ethernet activity, speed, and PoE status
Complies with CE and FCC standards, suitable for global deployments
4. Dimension
Remark
Accessories(DIN rail bracket, optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box, please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 11.4*9.3*3.5cm
Inner box size: 23*16.5*5.8cm
Product weight: 0.35Kg
Packing weight: 0.45Kg
Master box size: 67*33*47cm
Packing quantity: 40Pcs
Packing weight: 20Kg
5. Accessory
|
Industrial Optical Module |
|
|
OSPL1G05D |
1000BASE-SX |
|
OSPL1G06D |
1000BASE-SX(1310nm) |
|
OSPL1G20D |
1000BASE-LX |
|
OSPL1G40D |
1000BASE-EX |
|
OSBL1G20D-35 |
1000BASE-BX-U(TX 1310 RX1550) |
|
OSBL1G20D-53 |
1000BASE-BX-D(TX 1550 RX1310) |
|
Industrial DIN Power Supply |
|
|
IM-DAC220/DC48V2.5A |
AC220V to DC48V2.5A, -40℃～70℃ |
|
IM-DAC220/DC48V5A |
AC220V to DC48V5A, -40℃～70℃ |
|
IM-DAC220/DC48V10A |
AC220V to DC48V10A, -40℃～70℃ |
6. Application
1, CCTV PoE system
2, Fiber Optic Telecom
