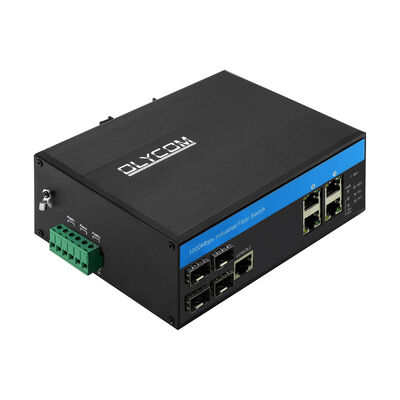

Olycom Managed Industrial PoE Fiber Switch
1. Product Overview
1.1 The IM-FP444GW is a managed industrial-grade PoE fiber switch designed for high-reliability Ethernet and fiber transmission in harsh environments. It integrates 4 × 100/1000/2500Mbps SFP fiber ports with 4 × 10/100/1000Mbps PoE-enabled RJ45 ports, providing a flexible access and aggregation solution for industrial networks, outdoor surveillance, and distributed fiber architectures.
1.2 Compliant with IEEE 802.3af/at, the switch delivers up to 30W per PoE port with a total power budget of 120W, ensuring stable power and data transmission to IP cameras, wireless APs, and edge devices. With its IP40-rated metal enclosure, DIN-rail or wall mounting, and wide operating temperature range of -40°C to +75°C, the IM-FP444GW is built for continuous operation in demanding industrial and outdoor deployments.
2. Key Features
The IM-FP444GW combines advanced Layer 2 management, industrial protection, and high-performance switching capabilities:
Hybrid Fiber & PoE Design – 4 × 2.5G SFP ports for long-distance fiber transmission and 4 × Gigabit RJ45 PoE ports.
Industrial PoE Power Delivery – IEEE 802.3af/at compliant, 30W per port, 120W total PoE budget, 48V output.
Advanced Layer 2 Management – Supports VLAN (802.1Q), QoS, IGMP/MLD snooping, LACP link aggregation, and bandwidth control.
Ring Protection & Redundancy – Supports STP, RSTP, MSTP, and ITU-T G.8032 Ethernet Protection Ring (EPR) for fast network recovery.
Industrial Reliability – 6KV Ethernet surge protection, ESD protection up to ±15KV air, EMC industrial-grade compliance.
High Switching Performance – 28Gbps switching capacity, 20.83Mpps forwarding rate, 8K MAC table, 9.6KB jumbo frames.
Flexible Management – Web GUI, Cisco®-like CLI, SNMP v1/v2c/v3, Telnet, SSH, HTTPS, and firmware redundancy.
Energy Efficient & Diagnostic Features – IEEE 802.3az EEE, cable diagnostics, port mirroring, RMON, and event logging.
3. Specification
|
Product Name |
10/100/1000Mbps Managed Industrial PoE Fiber Switch(4F+4TP) |
|
Model No. |
IM-FP444GW |
|
Port |
4*100/1000/2500Mpbs SFP ports SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 8*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
|
Protocol |
IEEE 802.3 IEEE802.3U IEEE802.3ab IEEE802.3z IEEE802.1d STP IEEE802.1w RSTP IEEE802.1s MSTP ITU-T G.8023 EPR/Y.1344 IEEE802.1Q IEEE802.1X IEEE802.3ad IEEE802.3x IEEE802.1ad IEEE802.1p IEEE802.1ab IEEE802.3az IEEE802.3af IEEE802.3at |
|
Switching Features |
Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 28Gbps(non-traffic jam) Forwarding rate: 20.83Mpps DRAM size: 128M Flash size: 16M VLAND ID: 4096 MAC Address Table Size: 8K Jumbo Frame: 9.6KB |
|
Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
|
LEDs |
Power, network, fiber PWR: Power
Orange: Link/ACT Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: FX1/FX2/FX3/FX4 |
|

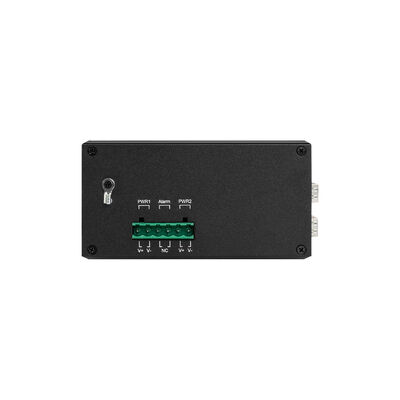

Power Supply |
Input voltage: 48V(max 52V) PoE output voltage: 48V Single PoE output power: 30W(port 1~4) Max budget: 120W Reverse connection: support |
|
PoE Wiring |
PoE af/at: 1/2(V+), 3/6(V-) |
|
Environment |
Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
|
Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV |
|
Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014 |
|
Mechanical information |
Shell: Corrugated metal shell, IP40 grade level Dimension: 158*115*60mm Mounting method: Din-rail/Wall mounting Weight: 0.75Kg/0.9Kg(Net/Gross) |
|
Warranty |
3 years, lifetime technical support |
4. Dimension
5. Web UI
6. Software Features
Please contact us for web manual or CLI manual
7. Application
8. Accessories
|
Industrial Optical Module |
|
|
OSPL1E06D-85 |
100BASE-FX(850nm) |
|
OSPL1E06D |
100BASE-FX |
|
OSPL1E20D |
100BASE-LX |
|
OSPL1E40D |
100BASE-EX |
|
OSBL1E20D-35 |
100BASE-BX-U(TX 1310 RX1550) |
|
OSBL1E20D-53 |
100BASE-BX-D(TX 1550 RX1310) |
|
OSPL1G05D |
1000BASE-SX |
|
OSPL1G06D |
1000BASE-SX(1310nm) |
|
OSPL1G20D |
1000BASE-LX |
|
OSPL1G40D |
1000BASE-EX |
|
OSBL1G20D-35 |
1000BASE-BX-U(TX 1310 RX1550) |
|
OSBL1G20D-53 |
1000BASE-BX-D(TX 1550 RX1310) |
|
Industrial DIN Power Supply |
|
|
IM-DAC220/DC12V1.67A |
AC220V to DC12V1.67A, -30℃～70℃ |
|
IM-DAC220/DC24V1A |
AC220V to DC24V1A, -30℃～70℃ |
|
IM-DAC220/DC48V1.6A |
AC220V to DC48V1.6A, -30℃～70℃ |
|
IM-DAC220/DC48V2.5A |
AC220V to DC48V2.5A, -40℃～70℃ |
|
IM-DAC220/DC48V5A |
AC220V to DC48V5A, -40℃～70℃ |
|
IM-DAC220/DC48V10A |
AC220V to DC48V10A, -40℃～70℃ |
9. FAQ
1, What chip is it based?
Olycom: Vitesse
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
3, Can I connect it with 10/100M devices?
Olycom: Yes
For LAN ports, they are 10/100/1000M auto-sensing
For Fiber ports, please configure 100Mbps speed via Web GUI or CLI
4, Can I shut down PoE function for some ports when necessary?
A: Yes
All the PoE managed switches in this series support PoE management
Please just set PoE status via Web GUI or CLI
5, Do you do SKD/CKD?
A: Yes
As a factory, we have dealt with this many times.
