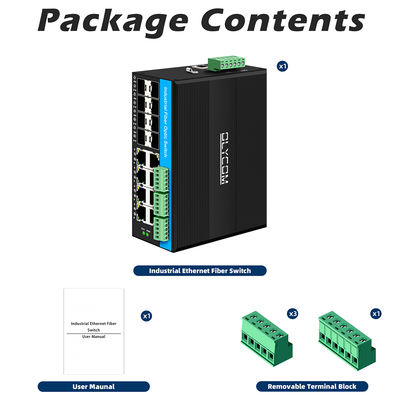

16 Port Managed Network Switch with CAN Bus & RS485
Model: IM-FS880GW-2C4D
|
Product Name |
10/100/1000Mbps Managed Industrial Fiber Switch with CAN Bus and RS485 |
|
Model No. |
IM-FS880GW-2C4D |
|
Port |

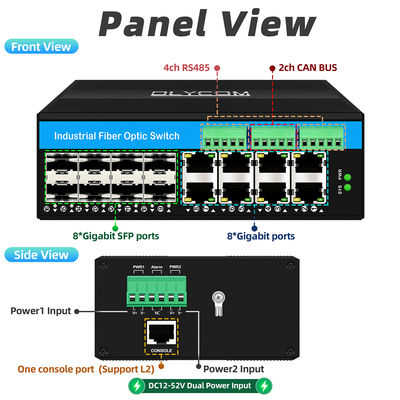

8 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) 2 x CAN Bus (Standard frame 11-bit ID, extended frame 29-bit ID, Support J1939, CANopen, DeviceNet and other protocols (firmware configuration required) 4 x RS485 (support TCP/UDP protocol) 1 x Console port (RJ45, Baud rate: 115200) |
|
Standard |
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
|
VLAND ID |
4096 |
|
Jumbo Frame |
9.6KB |
|
MAC Address Table Size |
8K |
|
Switching Features |
Transmission mode:storage and forward System bandwidth:58Gbps (non-traffic jam) DRAM size: 128M Flash size: 16M Packet buffer size: 4Mb |
|
Protocol
|
IEEE 802.3(10Base-T) IEEE 802.3u(100Base-TX) IEEE 802.3ab(1000Base-TX) IEEE 802.3z (1000Base-X ) IEEE 802.1D (STP) IEEE 802.1w (RSTP) IEEE 802.1s (MSTP) ITU-T G.8032 ERPS Ring IEEE 802.1Q( VLAN) IEEE 802.3x (Flow control) IEEE 802.3ad (LACP) IEEE 802.1p (QoS) IEEE 802.1ab(LLDP) IEEE 802.1az(EEE) RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 |
|
L2+ Managed |
Supports IEEE802.1q VLAN, port VLAN, based Mac VLAN, IP subnet VLAN, protocol VLAN, VLAN conversion MVR. Supports IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimizes power consumption. Supports STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring (EPR). Supports QoS, transmission classification QoS, CoS, bandwidth control (input/output direction), storm suppression, differential services. Supports dynamic IEEE 802.3ad LACP link aggregation, static link aggregation. Supports IGMP/MLD detection V1/V2/V3, IGMP filtering/adjustment, IGMP query. Supports IGMP proxy report, MLD detection. Security: based on port and Mac IEEE802.1X, RADIUS, ACL. Support IEEE802.3az EEE (Energy Efficient Ethernet) TACACS+, HTTP/HTTPS, SSL/SSH v2. Support Cisco® like CLI, Web network management, SNMP v1/v2c/v3, Telnet. Support software upgrade via TFTP and HTTP, firmware redundancy to prevent upgrade failure. Support RMON, MIB II, mirroring, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP. Support IPV6, ICMP v6NTP/SNTP, TFTP, QOS, ACL. Support SerialCRT,CLI,Telnet,SNMP,HTTP,SSH/SSL |
|
Power Supply |
DC12-52V, redundant dual power input and support reverse polarity No-load power: 3.6W Full-load power: 11.2W |
|
CAN Bus |
Standards: ISO 11898-2 (high-speed CAN) Communication rate: 10Kbps~1Mbps (configurable) Maximum number of nodes: 110 (default terminal resistance matching) Terminal resistance: 120Ω (optional terminal resistance built-in for each CAN) Isolation protection: Supports 2500V DC isolation (optional) Communication protocol: Supports CAN 2.0A/B, CAN FD Bus voltage range: -3V ~ +32V (anti-surge protection) |
|
RS485 |
Standards: TIA/EIA-485-A Working mode: Full-duplex or half-duplex (configurable) Communication rate: 115200bps (configurable) Maximum number of nodes: 32 (default) or expandable to 256 (repeater required) Isolation protection: Supports 1500V DC isolation (optional) Bus voltage range: -7V ~ +12V (surge protection) |
|
RS485/CAN Stability |
Continuous 72-hour full-load communication test under extreme temperature, communication bit error rate ≤1e-9 |
|
LEDs |
Power, network, fiber, system |
|
Environment |
Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing |
|
Industry Standards |
Ethernet/SFP interface: IEC61000-4-2 (ESD, electrostatic discharge immunity) Air discharge: ±15KV Contact discharge: ±8KV IEC61000-4-4 (EFT, electrical fast transient pulse interference) Signal: ±6KV IEC61000-4-5 (Surge, surge lightning interference) Signal: differential mode ± 2KV Common mode ± 6KV RS485/CAN interface: IEC 61000-4-2 (ESD, electrostatic discharge immunity) Contact discharge: ±8KV IEC 61000-4-5 (Surge, surge and lightning interference) Signal: differential mode ± 2KV |
|
Safety |
CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020 EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A2:2021/AC:2022 CE-LVD: EN IEC 62368-1:2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B (Class B) ANSI C63.4:2014 |
|
Mechanical information |
Shell:Corrugated metal shell; Safety class:IP40; Dimension:158 x 114.8 x 60mm; Mounting method:Din-rail mounting |
Dimension
Application
|
Industrial Optical Module |
|
|
OSPL1G05D |
1000BASE-SX |
|
OSPL1G06D |
1000BASE-SX(1310nm) |
|
OSPL1G20D |
1000BASE-LX |
|
OSPL1G40D |
1000BASE-EX |
|
OSBL1G20D-35 |
1000BASE-BX-U(TX 1310 RX1550) |
|
OSBL1G20D-53 |
1000BASE-BX-D(TX 1550 RX1310) |
|
Industrial DIN Power Supply |
|
|
IM-DAC220/DC12V1.67A |
AC220V to DC12V1.67A, -30℃～70℃ |
|
IM-DAC220/DC24V1A |
AC220V to DC24V1A, -30℃～70℃ |
